Smart System

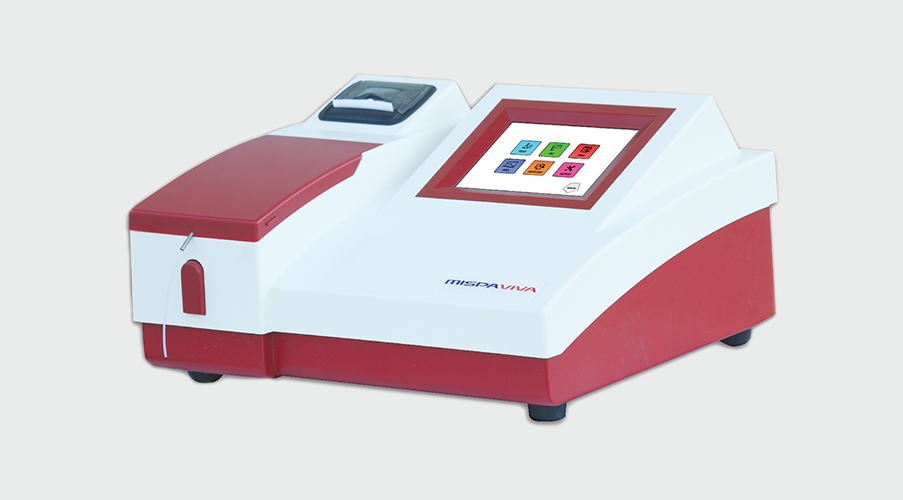

Mispa Viva is a compact, simple,reliable semi-automated biochemistry analyser capable to perform tests on whole blood,serum,plasma,cerebrospinal fluid and urine as sample.

Simple user friendly step by step instructions to ensured consistent results on which user can rely. Mispa Viva is designed to offer the best performance to laboratories looking toward achieving highest efficiency with optimal operative cost.

Contact Us Contact Us

Technical Specifications

Photometric Module	Display
6 interference filters (EMF) 340, 405, 505, 546, 578 and 630 nm and 2 optional Band width (8 nm) Silicon Photo Diode detectors Photometric range from 0 to 2.5 O.D Halogen lamp of 12 V, 20 W	Touch screen and popup key pad View Area 120 × 92 mm 25 test menu in each screen Help program provided for easy scratch proof operation of touch screen
Measuring Module	Printer
Dual mode (Flow cell & Cuvette) 30 µL flow cell volume 10 mm square cuvette Variable temperature range through 25°C, 30°C, 37°C by means of Peltier controlled elements Minimum aspiration volume – 300 µL Carry Over Elimination Facility Standard & Sample Repeat Facility	Inbuilt High Resolution 57 mm Graphic Thermal Printer Customized print set up: (Printer ‘ON’ or ‘OFF’ mode | Graph Print ‘ON’ or ‘OFF’ mode | Detailed print mode with Lab Name & Doctor Name | Brief Print Mode)
Analysis Mode	Memory
1-Point linear & non linear 2-Point linear & non linear 1-Point sample blank linear & non linear Rate linear & non linear Absorbance Immunoturbidimetry Bichromatic Kinetic with calibration Kinetic with factor Off System Tests Calculated Tests	200 defined programs 5000 Test Results Reagent Blank storage 18000 Control Results Built in Calibration History Help Function Key
Calibration Curve	Result Recall
Up to 9 calibration points Up to 3 replicates per point Axis: Linear and log	Collated Report by Date, ID Date and Test wise
Quality Control	Interface
Westgard’s Algorithm Levey-Jennings chart	LIS compatibility Port for external Key board, RS 232 Port
Power	Dimension
Power supply: 85 - 265 V AC, 50-60Hz, 90W	362 × 364 × 195 (L × W × H) Weight: 6 kg
